Kia Sportage: What to do in an emergency / If you have a flat tire (With tire mobility kit)
For safe operation, carefully read and follow the instructions in this manual
before use.

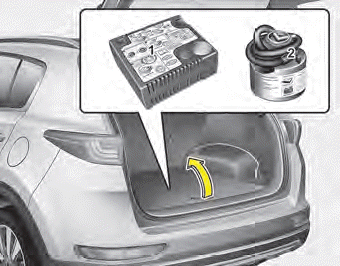

(1) Compressor
(2) Sealant bottle
The Tire Mobility Kit is a temporary fix to the tire and the tire should be inspected
by an authorized Kia dealer as soon as possible.
When two or more tires are flat, do not use the tire mobility kit. The Tire Mobility
Kit supports only enough sealant for one flat tire.
WARNING - Tire wall
Do not use the Tire Mobility Kit to repair punctures in the tire walls. This
can result in an accident due to tire failure.
Have your tire repaired as soon as possible. The tire may loose air pressure
at any time after inflating with the Tire Mobility Kit.
■ Example • Type A
■ Example • Type B
❈ The actual Jack label in the vehicle may differ from the illustration. For
more detailed specifications, refer to the label attached to the ja ...
With the Tire Mobility Kit you stay mobile even after experiencing a tire puncture.
The system of compressor and sealing compound effectively and comfortably seals
most punctures in a passenger c ...
Other information:
Specifications
Battery Sensor
Item
Specification
Rated Voltage (V)
12 - 14
Quiescent Current (uA)
Max. 175
Pin
2 (B+, LIN)
...
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the steering column shroud panel.
(Refer to Body - "Steering Column Shroud Panel")
3.
Disconnect the 6P connector (A) o ...
