Kia Sportage: If you have a flat tire (With tire mobility kit) / Checking the tire inflation pressure

Kia Sportage QL (2015-2024) Owners Manual / What to do in an emergency / If you have a flat tire (With tire mobility kit) / Checking the tire inflation pressure

1.After driving approximately 4 ~ 6 miles (7 ~ 10 km or about 10 min), stop at a safe location.

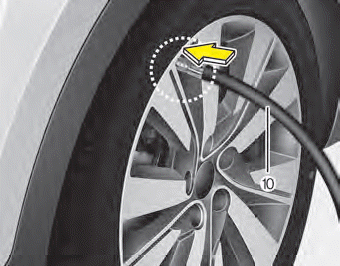

2.Screw the connection hose (10) of the compressor to the valve stem

3.Plug the compressor power cord into the vehicle power outlet.

4.Adjust the tire inflation pressure to the recomended tire inflation.

With the ignition switch on, proceed as follows.

- To increase the inflation pressure

: Switch on the compressor, position I. To check the current inflation pressure setting, briefly switch off the compressor.

✽ NOTICE

The pressure gauge may show higher than actual reading when the compressor is running. To get an accurate tire pressure reading, the compressor needs to be turned off.

- To reduce the inflation pressure: Press the button (9) on the compressor.

CAUTION - Tire pressure sensor

When you use the Tire Mobility Kit including sealant not approved by Kia, the tire pressure sensors may be damaged by sealant. The sealant on the tire pressure sensor and wheel should be removed when you replace the tire with a new one and inspect the tire pressure sensors at an authorized dealer.

Distributing the sealant
11. Immediately drive approximately 4~6 miles (7~10 km or, about 10 min) to evenly distribute the sealant in the tire. Do not exceed a speed of 50 mph (80 km/h). If possible, do not fall below a sp ...

Technical Data
System voltage: DC 12 V Working voltage: DC 10 - 15 V Amperage rating: max. 15 A Suitable for use at temperatures: -22 ~ +158°F (-30 ~ +70°C) Max. working pressure: 87 psi (6 bar)   Size ...
