Kia Sportage: Hood / Hood Weatherstrip Repair procedures

Kia Sportage QL (2015-2025) Service Manual / Body (Interior and Exterior) / Hood / Hood Weatherstrip Repair procedures

Replacement
1.

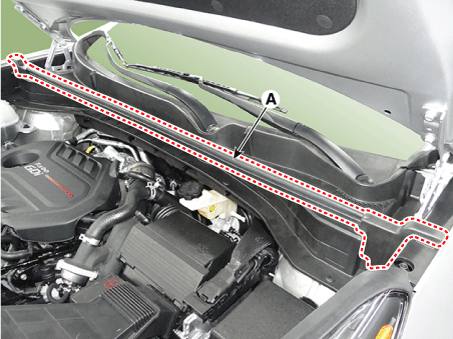

Remove the hood weatherstrip (A).

Be careful not to damage the hood and body.

2.
Install in the reverse order of removal.

Replace any damaged clips.
Hood Insulator Pad Repair procedures
Replacement 1. Using a clip remover, detach the clips, and remove the hood insulator pad (A).    ...

Hood Latch Release Handle Components and components location
Component Location 1. Hood latch release handle ...
