Kia Sportage: Hood / Hood Insulator Pad Repair procedures

Kia Sportage QL (2015-2019) Service Manual / Body (Interior and Exterior) / Hood / Hood Insulator Pad Repair procedures

Replacement
1.

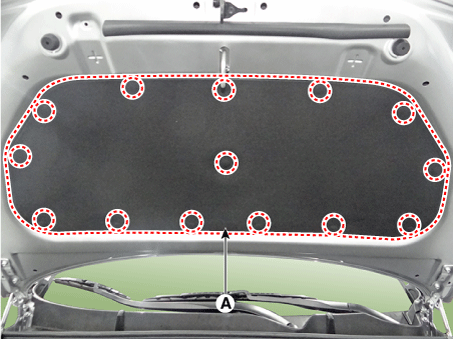

Using a clip remover, detach the clips, and remove the hood insulator pad (A).

Be careful not to damage the hood and body.

2.
Install in the reverse order of removal.

Replace any damaged clips.
