Description

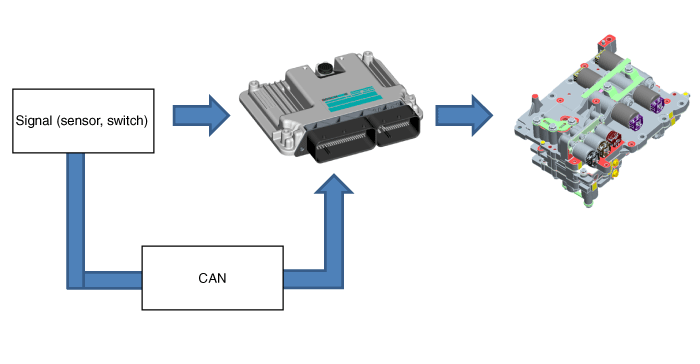

The module receives and processes signals from various sensors and implements a wide range of transaxle controls to ensure optimal driving conditions for the driver.

Functions

•	Monitors the vehicle's operating conditions to determine the optimal gear setting.

•	Performs a gear change if the current gear setting differs from the identified optimal gear setting.

•	Determines the need for torque converter clutch activation and engages the clutch accordingly.

•	Calculates the optimal line pressure level by constantly monitoring the torque level and adjusts the pressure accordingly.

•	Diagnoses the faults and failures for automatic transaxle.

Operation

Repair procedures

Adjustment TCM adaptive values learning • TCM adaptive values learning : When shift shock occurs or parts related with the transaxle are replaced, TCM lea ...

Transaxle Control Module (TCM) Schematic diagrams

TCM Connector TCM terminal function Connector [A] Pin Description 　　 1 Solenoi ...
