Kia Sportage: Front Bumper / Front Bumper Cover Components and components location

Kia Sportage QL (2015-2021) Service Manual / Body (Interior and Exterior) / Front Bumper / Front Bumper Cover Components and components location

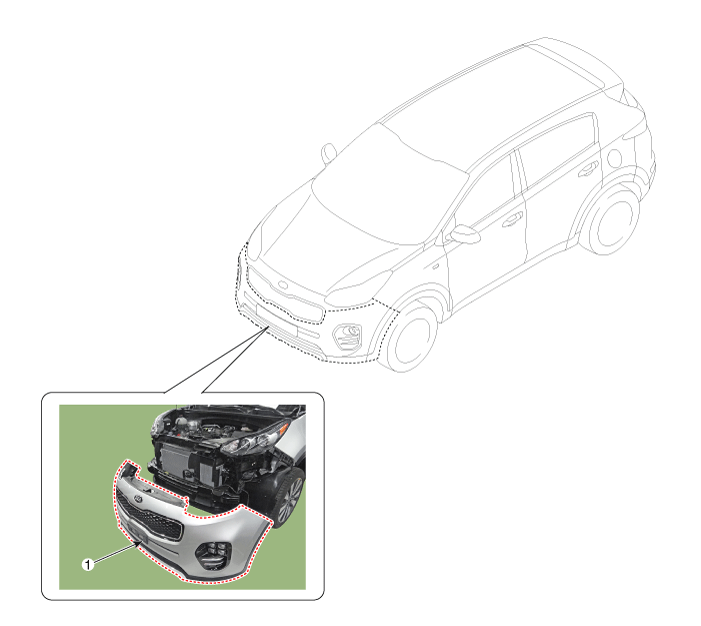

Component Location

1. Front bumper cover


Components and components location
Components 1. Front bumper cover 2. Front bumper side bracket [LH] 3. Front bumper side bracket [RH] ...

Front Bumper Cover Repair procedures
Replacement    Put on gloves to protect your hands.    ...
