Kia Sportage: Brake System / Stop lamp switch Schematic diagrams

Kia Sportage QL (2015-2026) Service Manual / Brake System / Brake System / Stop lamp switch Schematic diagrams

Schematic Diagram

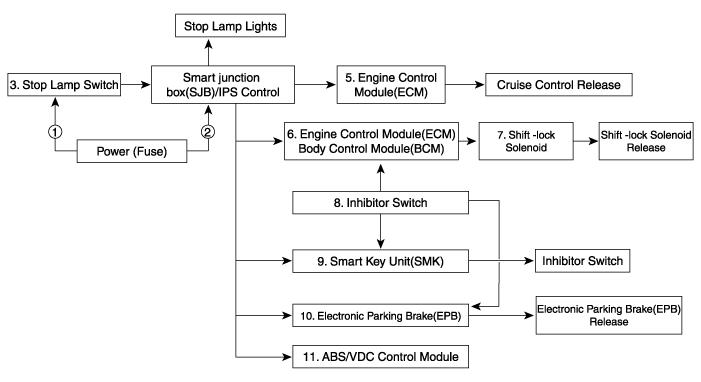

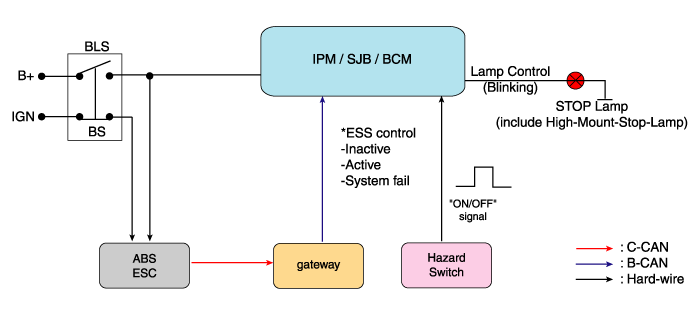

System circuit diagram

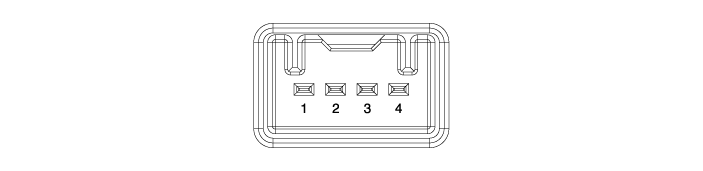

Terminal function

Teminal	Description
1	IGN1
2	Engine Control Module (ECM)
3	B+
4	Stop Lmap

Stop lamp switch Components and components location

Components 1. Brake pedal member assembly 2. Stop lamp switch 3. Brake pedal arm ...

Stop lamp switch Troubleshooting

Troubleshooting 1. Part diagnosis Items Cause Symptom S ...
