Kia Sportage: Engine Control System / Heated Oxygen Sensor (HO2S) Schematic diagrams

Kia Sportage QL (2015-2025) Service Manual / Engine Control / Fuel System / Engine Control System / Heated Oxygen Sensor (HO2S) Schematic diagrams

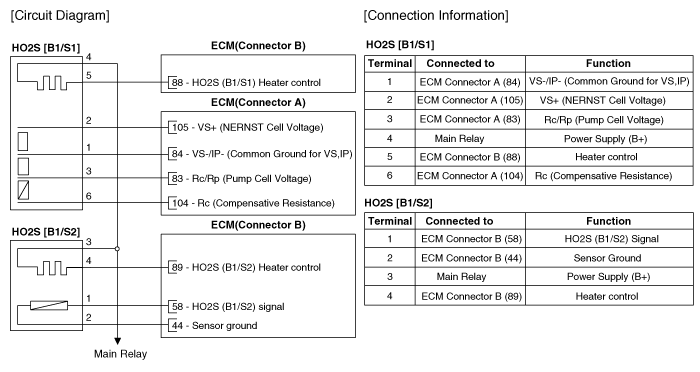

Circuit Diagram

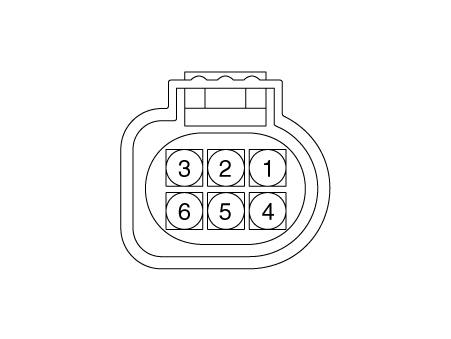

Harness Connector
[Bank 1 / Sensor 1]

[Bank 1 / Sensor 2]

Heated Oxygen Sensor (HO2S) Description and operation
Description Heated Oxygen Sensor (HO2S) consists of zirconium and alumina and is installed both upstream and downstream of the Manifold Catalytic Converter. The sensor output vol ...

Heated Oxygen Sensor (HO2S) Repair procedures
Inspection 1. Turn the ignition switch OFF. 2. Disconnect the HO2S connector. 3. Measure resistance betwe ...
