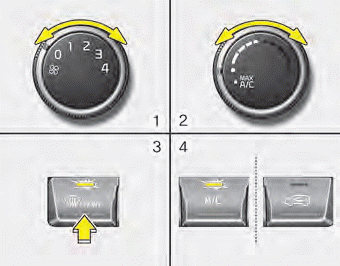

To defog inside windshield

1. Set the fan speed to the desired position.

2. Select desired temperature.

3. Select the or position.

4. The outside (fresh) air and air conditioning will be selected automatically.

If the air conditioning and/or outside (fresh) air position are not selected automatically, press the corresponding button manually.

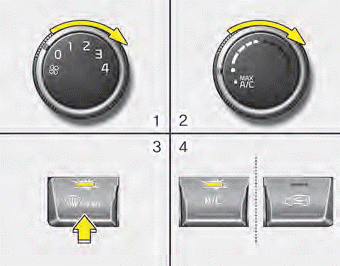

To defrost outside windshield

1. Set the fan speed to the highest position.

2. Set the temperature to the extreme hot position.

3. Select the position.

4. The outside (fresh) air and air conditioning will be selected automatically.

If the air conditioning is not selected automatically press the corresponding button manually.
