Kia Sportage: Fuel Delivery System / Fuel Pressure Sensor (FPS) Repair procedures

Kia Sportage QL (2015-2023) Service Manual / Engine Control / Fuel System / Fuel Delivery System / Fuel Pressure Sensor (FPS) Repair procedures

Inspection
1.
Connect the KDS/GDS on the Data Link Connector (DLC).
2.
Check the output voltage of fuel pressure sensor (FPS).
Pressure [kPa (kgf/cm², psi)]
Output Voltage (V)
50 (0.51, 7.3)
0.3
600 (6.12, 87.0)
2.5
1100 (11.2, 159.5)
4.5

Removal
1.
Release the residual pressure in fuel line.
(Refer to the Fuel Delivery System - Repair Procedures - "Release Residual Pressure in Fuel Line")
2.
Remove the rear seat.
(Refer to Body - "Rear Seat Assembly")
3.

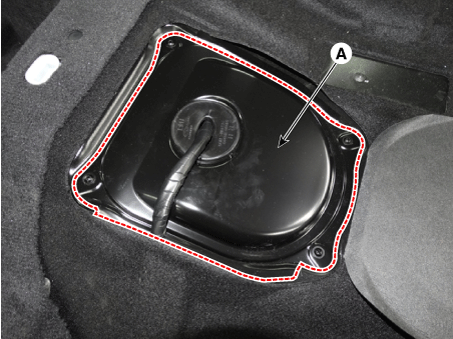

Remove the fuel pump service cover (A).

4.

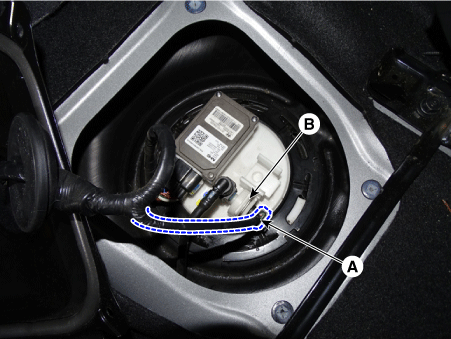

Disconnect the fuel pressure sensor connector (A).
5.
Remove the fuel pressure sensor fixing pin (B).

6.
Remove the fuel pressure sensor from the fuel pump.
Installation
1.
Install in the reverse order of removal.
