Inspection
1.
Turn ignition switch OFF and disconnect the negative (-) battery cable.
2.
Remove the crash pad lower panel.
(Refer to Body - "Crash pad lower panel")
3.

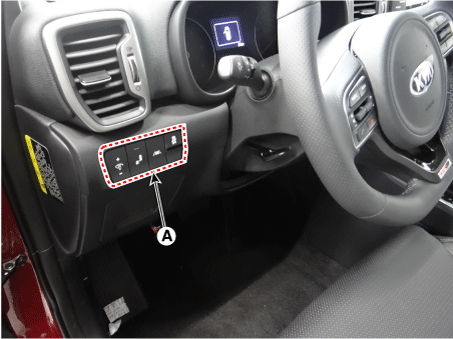

Remove the crash pad side switch assembly (A) after loosening the screws.

4.

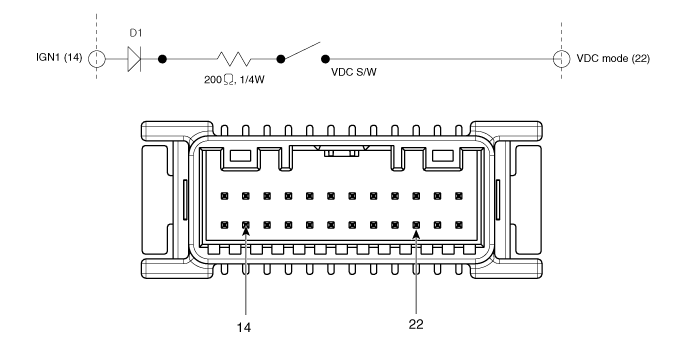

Check the continuity between the switch terminals as the ESP OFF switch is engaged.

Terminal No.
Description
14
ING 1
22
ESP MODE

ESP OFF Switch Description and operation
Description 1. The ESP OFF switch is for the user to turn off the ESP system. 2. The ESP OFF lamp is on when ESP OFF switch is engaged. ...

DBC Switch Description and operation
Description The DBC function is the acronym word of Downhill Brake Control function. When a vehicle goes down the hill, just pushing the DBC switch enables the car to keep its ve ...
