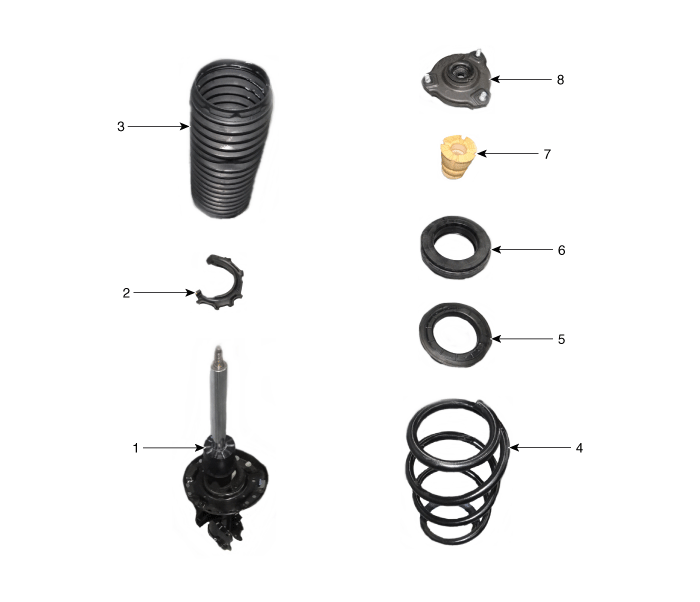

Components

1. Strut assembly
2. Spring lower pad
3. Dust cover
4. Spring coil spring
5. Spring upper pad
6. Strut bearing
7. Rubber
8. Insulator

Components and components location
Components Location 1. Gear box 2. Sub frame 3. Drive shaft 4. Tie rod end 5. Stabilizer link 6. Front axle ...

Front Strut Assembly Repair procedures
Removal 1. Remove wheel nuts, wheel and tire (A) from hub. Tightening torque: 107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 9 ...
