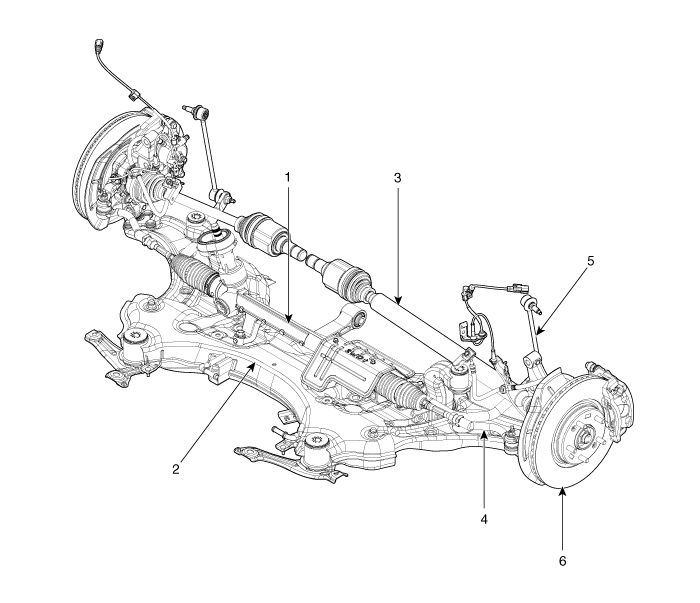

Components Location

1. Gear box
2. Sub frame
3. Drive shaft

4. Tie rod end
5. Stabilizer link
6. Front axle

Front Suspension System

...

Front Strut Assembly Components and components location

Components 1. Strut assembly 2. Spring lower pad 3. Dust cover 4. Spring coil spring 5. Spring upper pad 6. Strut bearing 7. Rubber 8. Ins ...
