Kia Sportage: Towing / Removable towing hook
.png)

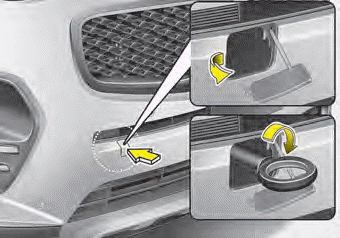

■ Front
.png)

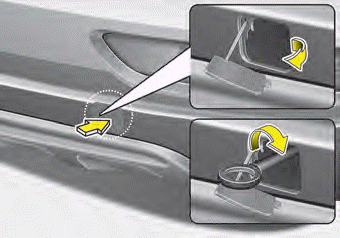

■ Rear
1. Open the tailgate, and remove the towing hook from the tool case.
2. Remove the hole cover pressing the upper (front) / lower (rear) part of the
cover on the bumper.
3. Install the towing hook by turning it clockwise into the hole until it is
fully secured.
4. Remove the towing hook and install the cover after use.
If emergency towing is necessary, we recommend having it done by an authorized
Kia dealer or a commercial tow-truck service. Proper lifting and towing procedures
are necessary to prevent damage ...
■ Front
■ Rear
If towing is necessary, we recommend you to have it done by an authorized Kia
dealer or a commercial tow truck service.
If towing service is not available in an emergency, ...
