Kia Sportage: Front Seat / Front Seat Shield Outer Cover Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
|

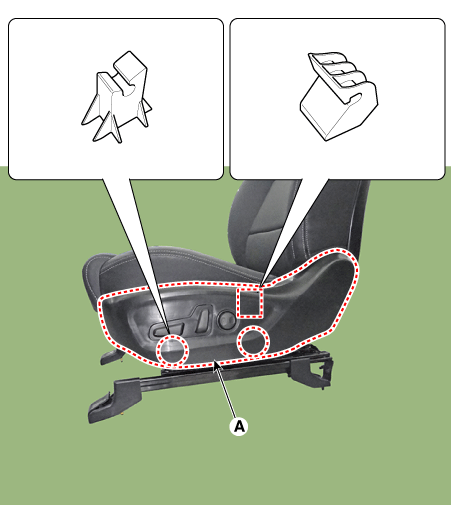

| 2. |
Remove the front seat shield outer cover (A) by using a remover.
| •
|
Correctly remove the front seat shield outer cover to
the removal procedure and direction.
|
| •
|
Be careful not to damage the mounting bracket and hook
when removing the cover.
|
|
|

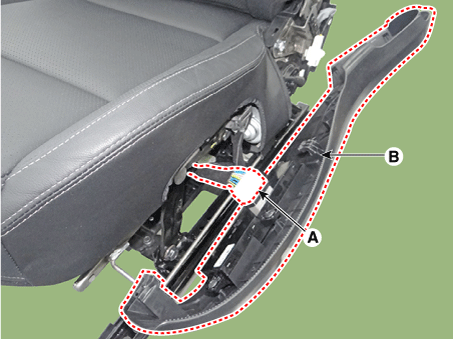

| 3. |
Disconnect the front seat power switch connector (A).
|
| 4. |
Install in the reverse order of removal.
| •
|
Make sure the fuel filler door locks/unlocks and opens/closes
properly.
|
| •
|
Replace any damaged clips.
|
|
|
Component Location
1. Front seat shield outer cover
...
Component Location
1. Front seat shield inner cover
...
