Kia Sportage: Front Seat / Front Seat Shield Outer Cover Components and components location

Kia Sportage QL (2015-2024) Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Shield Outer Cover Components and components location

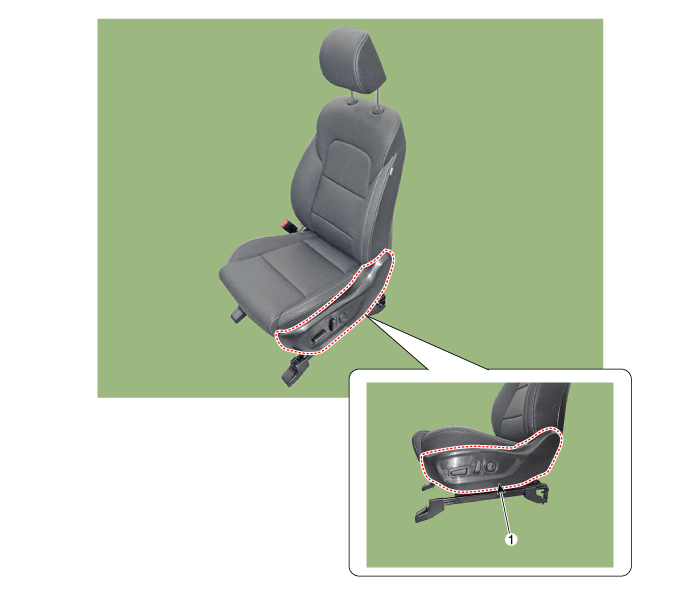

Component Location

1. Front seat shield outer cover
