Inspection
Seat Control Switch
1.

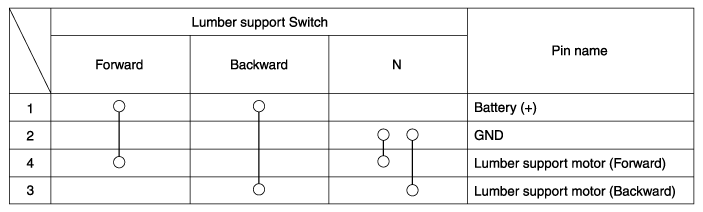

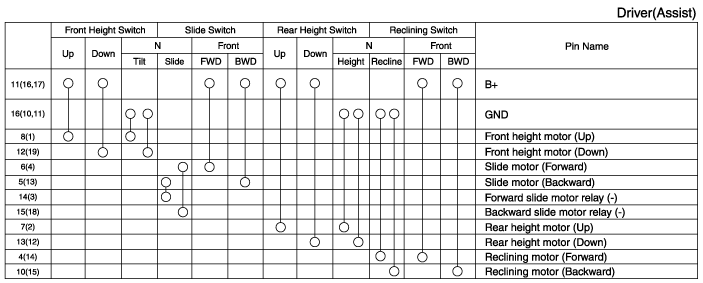

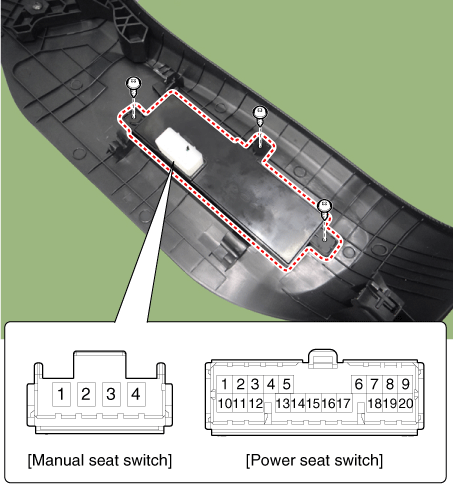

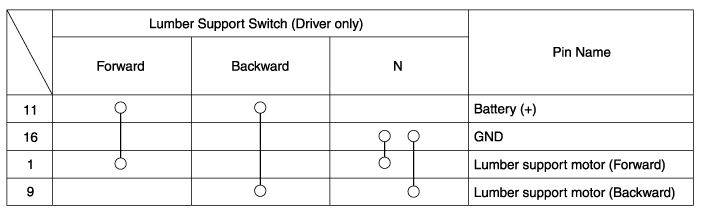

With the power seat switch in each position, make sure that continuity exists between the terminals below. If continuity is not as specified, replace the power seat switch.

[Manual seat control switch]

[Power seat control switch]

Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the front seat outer shield cover.
(Refer to Body - "Front Seat Outer Shield Cover")
3.

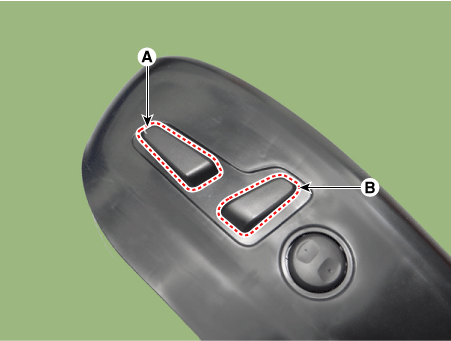

Remove the slide knob (A) and height knob (B).

4.

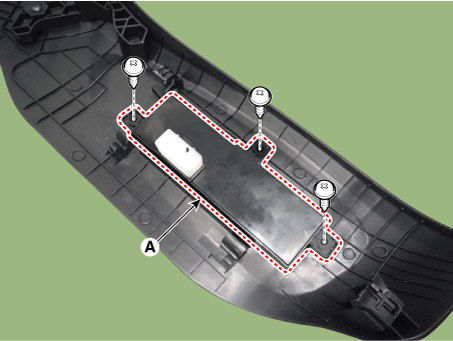

Remove the power seat control switch (A) after loosening the screws.

Installation
1.
Install the power seat control switch.
2.
Install the slide knob and height knob.
3.
Install the front seat outer shield cover.
4.
Connect the negative (-) battery terminal.
Power Seat Control Switch Schematic diagrams
Circuit Diagram [Driver power seat switch] [Assist power seat switch] ...

Seat Heater Components and components location
Component Location Front Seat Heater 1. Seat heater unit (Assist seat only) 2. Front seat back heater 3. Front seat cushion heater ...
