Kia Sportage: Electronic parking brake (EPB) / EPB malfunction indicator

Kia Sportage QL (2015-2026) Owners Manual / Driving your vehicle / Brake system / Electronic parking brake (EPB) / EPB malfunction indicator

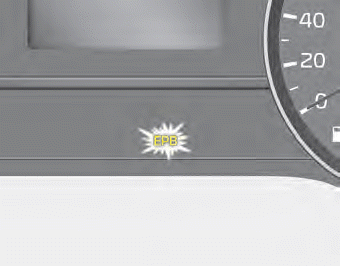

This warning light illuminates if the engine start/stop button is changed to the ON position and goes off in approximately 3 seconds if the system is operation normally.

If the EPB malfunction indicator remains on, comes on while driving, or does not come on when the ignition switch or the engine start/stop button is changed to the ON position, this indicates that the EPB may have malfunctioned.

If this occurs, have your vehicle checked by an authorized Kia dealer as soon as possible.

The EPB malfunction indicator may illuminate when the ESC indicator comes on to indicate that the ESC is not working properly, but it does not indicate a malfunction of the EPB.
