Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.
Remove the front door module.
(Refer to Front Door - "Front Door Module")
2.

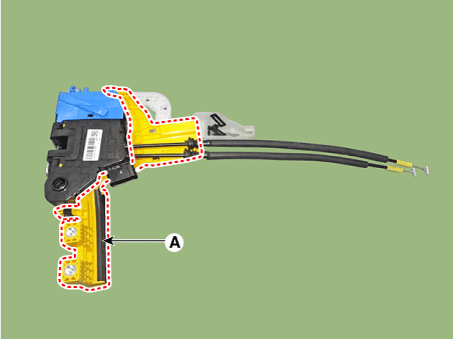

Remove the front door retainer (A).

3.

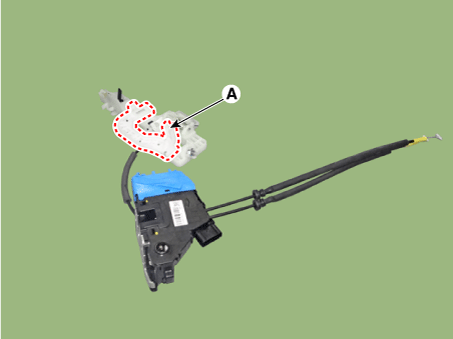

Separated the handle base and then remove the base support bracket (A).

4.

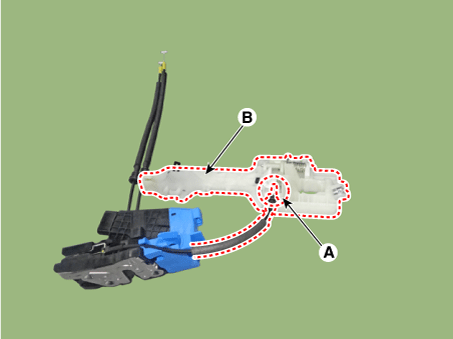

Disconnect the cable (A) and then remove the handle base (B).

5.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Make sure the door locks/unlocks and opens/closes properly.
Replace any damaged clips.
Front Door Latch Components and components location
Component Location 1. Front door latch ...
