Description
Camshaft Position Sensor (CMPS) is a hall sensor and detects the camshaft position by using a hall element.
It is related with Crankshaft Position Sensor (CKPS) and detects the piston position of each cylinder which the CKPS can't detect.
The CMPS is installed on engine head cover and uses a target wheel installed on the camshaft. The Cam Position sensor is a hall-effect type sensor. As the target wheel passes the Hall sensor, the magnetic field changes in the sensor. The sensor then switches a signal which creates a square wave.

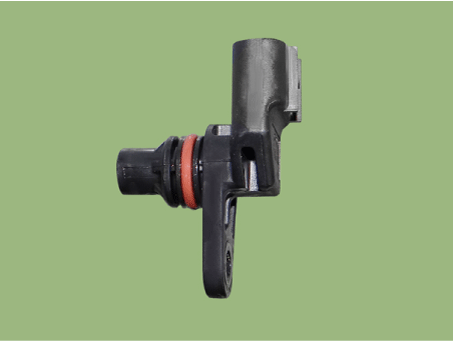

[Bank1 / Sensor1]

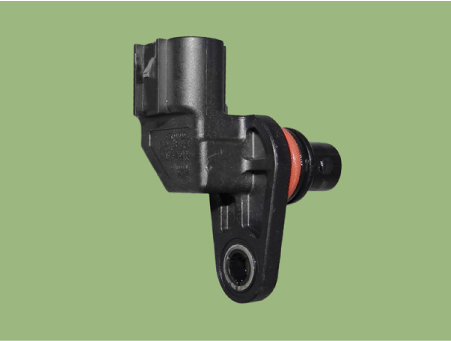

[Bank1 / Sensor2]

Crankshaft Position Sensor (CKPS) Troubleshooting
Wave Form ...

Camshaft Position Sensor (CMPS) Schematic diagrams
Circuit Diagram ...
