Kia Sportage: Front Door / Front Door Belt Inside Weatherstrip Repair procedures
[Front door belt inside weatherstrip]
1. |
Remove the front door trim.
(Refer to Front Door - "Front Door Trim")
|
2. |

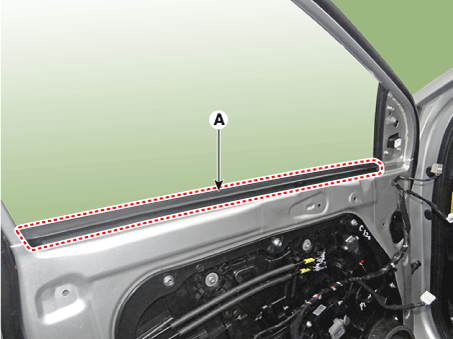

Remove the front door belt inside weatherstrip (A).
|
3. |
Install in the reverse order of removal.
Replace any damaged clips.
|
|
Replacement
Put on gloves to protect your hands.
...
Replacement
1.
Loosen the front door checker (B) mounting bolt.
Tightening torque :
19.6 - 29.4 N·m (2.0 - 3.0 kgf·m,14.5 - ...
