Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.
1.

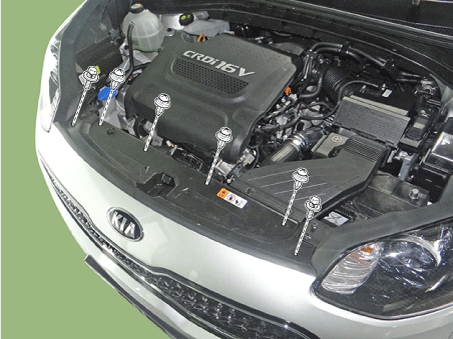

Loosen the radiator upper cover mounting bolts and clips.

2.

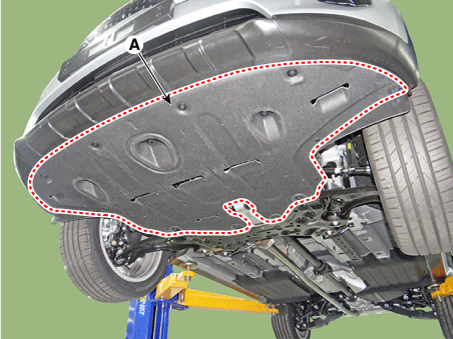

Remove the engine under cover (A).

3.

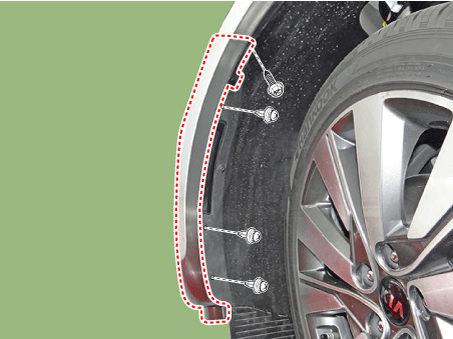

Disconnect the side after loosening the front bumper sides screws and clips.

Remove the front bumper by lifting up and pulling out the side of the front bumper.

4.

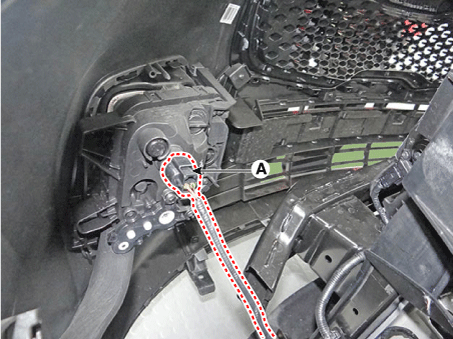

Disconnect the front bumper main connector (A).

5.
Remove the front bumper cover (A).

6.
Install in the reverse order of removal.

Make sure the connector is connected properly.
Replace any damaged clips.
