Kia Sportage: Charging System / Alternator Specifications

Kia Sportage QL (2015-2023) Service Manual / Engine Electrical System / Charging System / Alternator Specifications

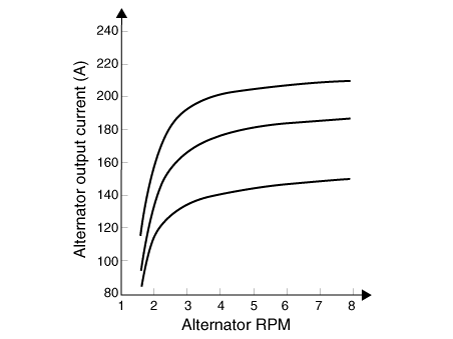

Specification
Alternator
Item
Specification
Rated voltage
13.5V , 140A
Speed in use
1,500 - 18,000rpm
Pin
3 (C, L, FR)
Pully Type
General pulley
Voltage regulator
IC Regulator built in type
Default regulated voltage (V) [COM terminal]
14.39 - 15.43 [-35°C (31°F)]
14.15 - 14.95 [25°C (77°F)]
13.23 - 14.49
[140°C (284°F)]
Regulator Setting Voltage (V) [COM terminal]
11.0 - 16.0
[5,000 rpm / min / 10A]
