Kia Sportage: Automatic Transaxle Control System / Fluid Components and components location

Kia Sportage QL (2015-2026) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Fluid Components and components location

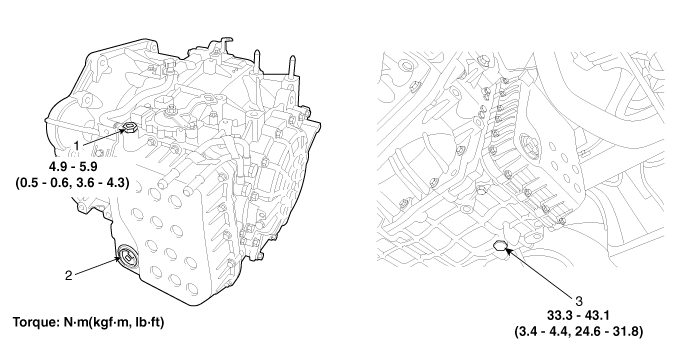

Components Location

1. ATF filler hole (eyebolt) 2. ATF level plug	3. ATF drain plug

Oil Pump Description and operation

Description • The oil pump is integrated with 26 brake chamber. • Rotation of the pump builds the hydraulic pressure needed for lubr ...

Fluid Repair procedures

Inspection Automatic Transaxle Fluid (ATF) Level Check The regular maintenance (level check) of 6-speed aut ...
