Kia Sportage: Indicators And Gauges / Instrument Cluster Schematic diagrams

Kia Sportage QL (2015-2021) Service Manual / Body Electrical System / Indicators And Gauges / Instrument Cluster Schematic diagrams

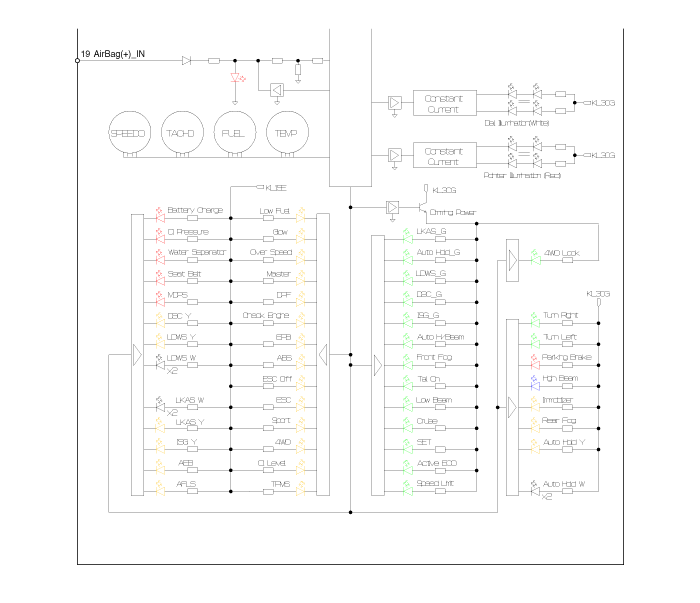

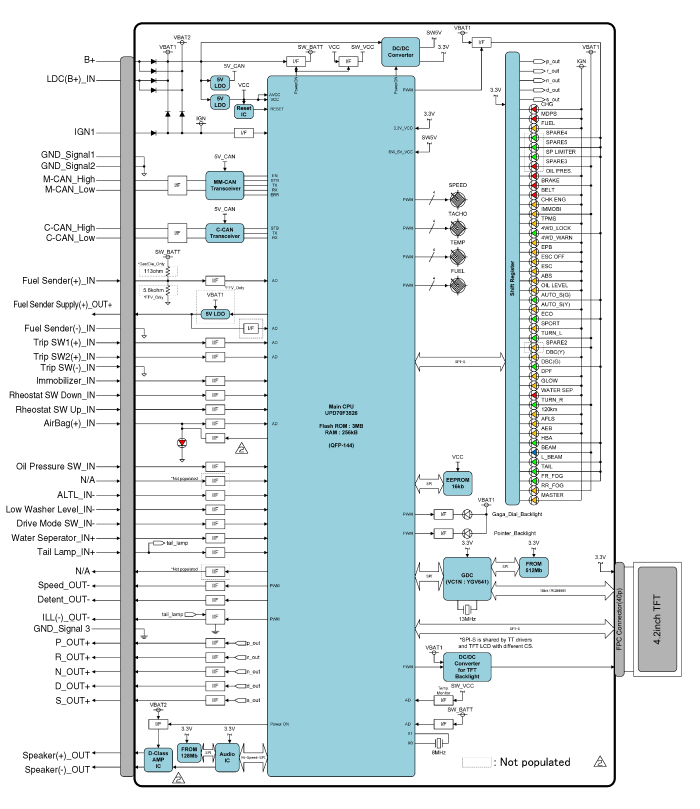

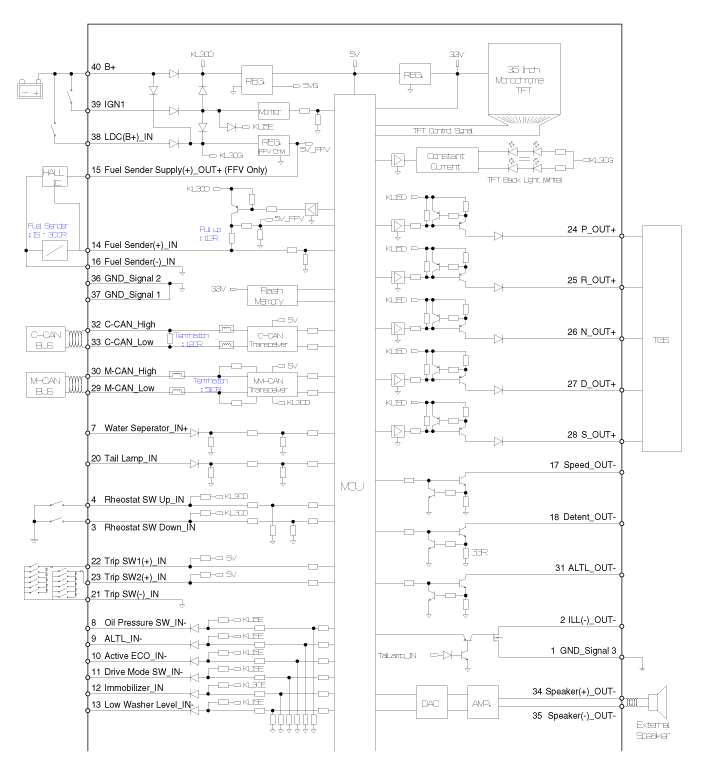

Circuit Diagram
[General Standard]

[General Supervision]

Instrument Cluster Components and components location
Components [Standard Type (3.5")] [Super Vision Type (4.3")] Connector Pin Information No. Description No. ...

Instrument Cluster Description and operation
Description Communication Network Diagram Abbreviation Expalnation ACU Airbag Control Unit ABS ...
