Kia Sportage: Automatic Transaxle Control System / 26 Brake Control Solenoid Valve (26/B_VFS) Components and components location

Kia Sportage QL (2015-2024) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / 26 Brake Control Solenoid Valve (26/B_VFS) Components and components location

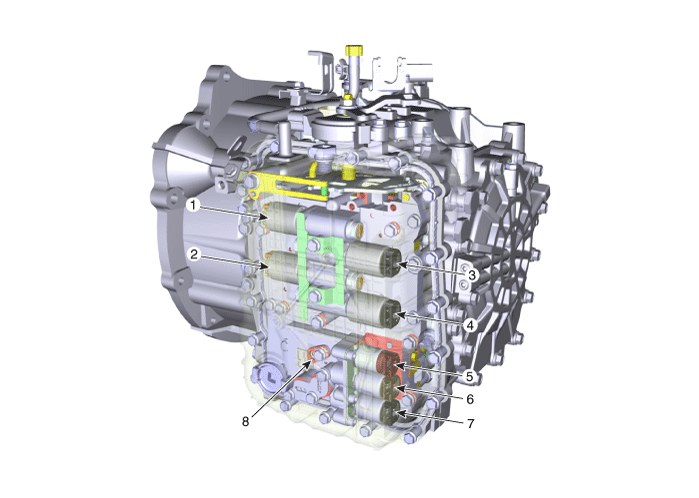

Component Location

1. 26 Brake Control Solenoid Valve (26/B)
2. 35R Clutch Control Solenoid Valve (35R/C)
3. Underdrive Brake Control Solenoid Valve (UD/B)
4. Overdrive Clutch Control Solenoid Valve (OD/C)
5. SS-A Solenoid Valve (ON/OFF)
6. Torque Converter Control Solenoid Valve (T/CON)
7. Line Pressure Control Solenoid Valve
8. Oil temperature sensor


26 Brake Control Solenoid Valve (26/B_VFS) Specifications
Specification Item Specification Control type N/L (Normal Low) Control pressure (kpa (kgf/cm², psi)) ...

26 Brake Control Solenoid Valve (26/B_VFS) Description and operation
Description • 26 Brake control solenoid valve is a Variable Force Solenoid (VFS) type. • When TCM supplies variable current to so ...
