Kia Sportage: Crash Pad / Crash Pad Side Cover Repair procedures

Kia Sportage QL (2015-2023) Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Side Cover Repair procedures

Replacement

Put on gloves to protect your hands.

Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Be careful not to bend or scratch the trim and panels.
1.
Using a remover, remove the crash pad side cover (A).

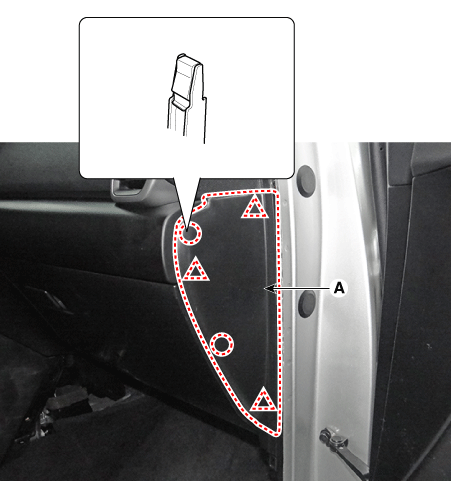

[LH]

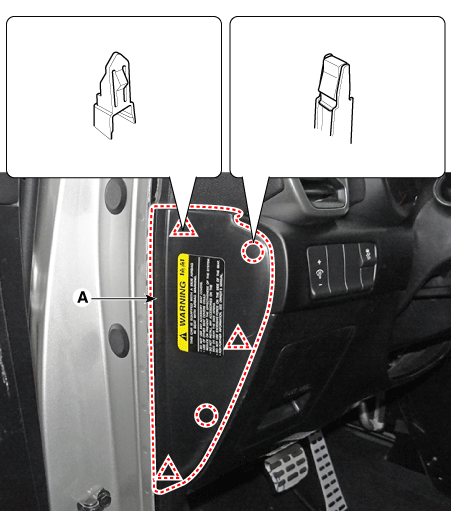

[RH]

2.
Install in the reverse order of removal.

Replace any damaged clips.
