Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

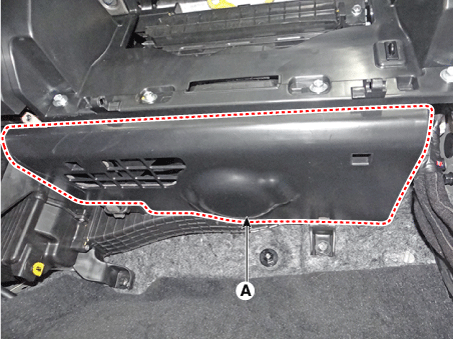

1.	Remove the crash pad under cover [RH] (A) after loosening the mounting screws.

Install in the reverse order of removal.

Replace any damaged clips.
