Kia Sportage: Crash Pad / Crash Pad Side Cover Components and components location

Kia Sportage QL (2015-2026) Service Manual / Body (Interior and Exterior) / Crash Pad / Crash Pad Side Cover Components and components location

Component Location

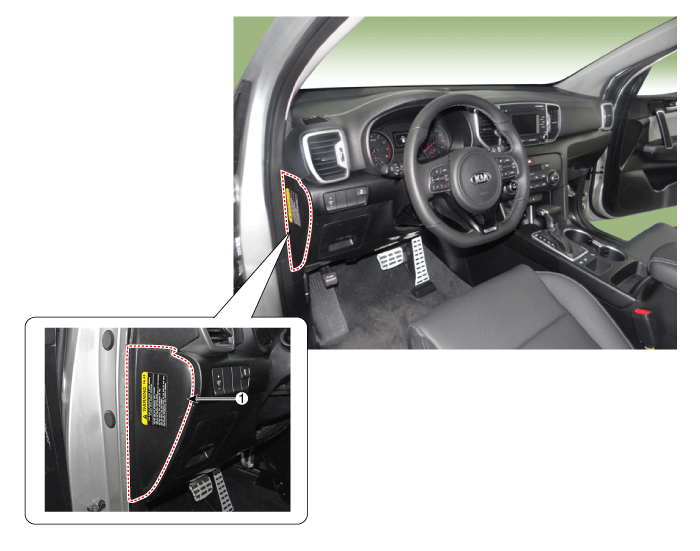

[LH]

1. Crash pad side cover [LH]

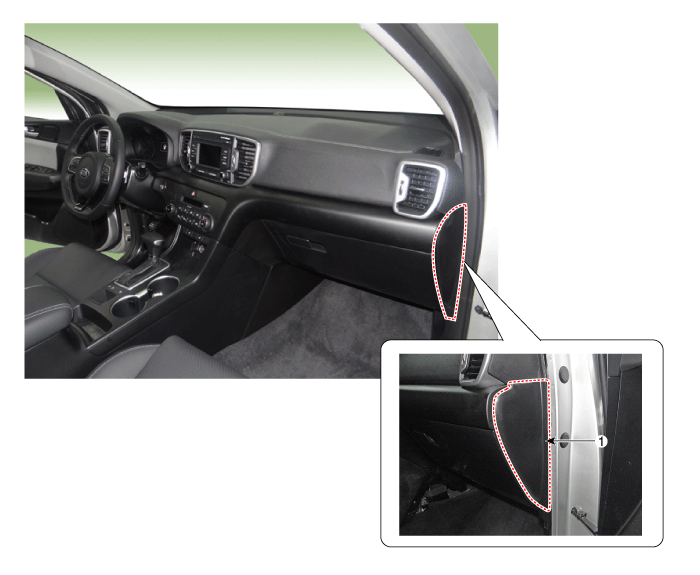

[RH]

1. Crash pad side cover [RH]
