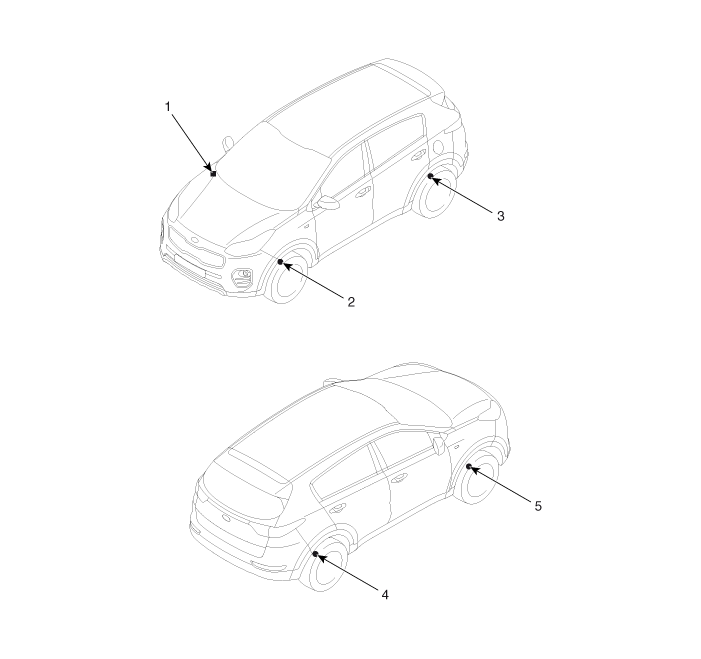

Components Location

1. BCM (TPMS)
2. TPMS Sensor (FL)
3. TPMS Sensor (RL)

4. TPMS Sensor (RR)
5. TPMS Sensor (FR)
