Kia Sportage QL (2015-2024) Service Manual / Body Electrical System / Fuses And Relays / Components and components location

Component Location

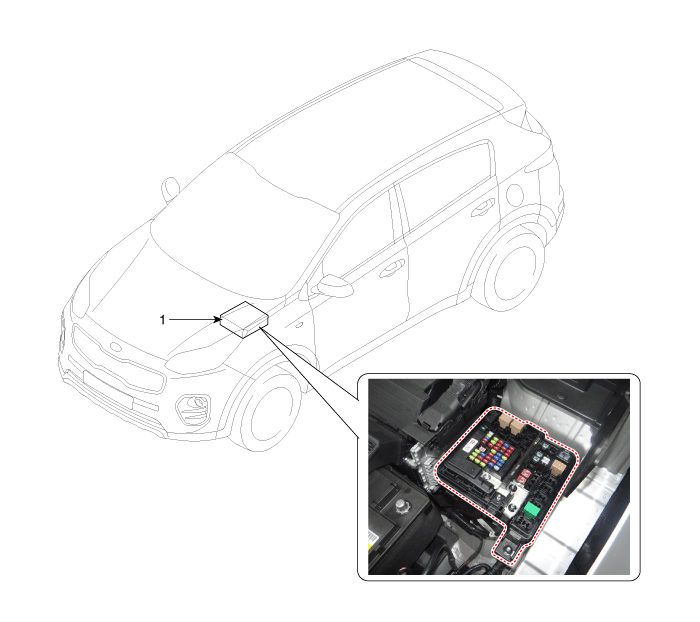

[Engine Room]

1. Engine room junction block

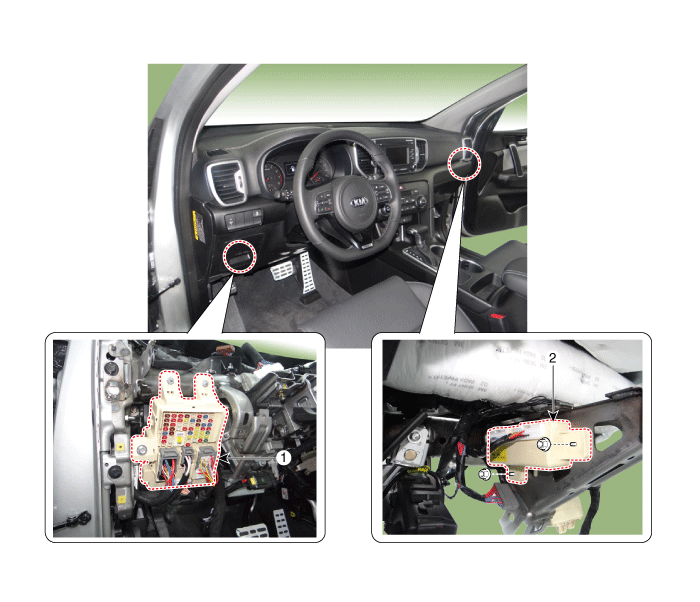

[Interior Relay]

1. Smart junction block (SJB)
2. ICM relay block

Fuses And Relays
...

Relay Box (Engine Compartment) Components and components location
Component Location Engine room junction block Metal Core Block (PCB) ...
