Kia Sportage: Interior Trim / Center Pillar Trim Components and components location

Kia Sportage QL (2015-2021) Service Manual / Body (Interior and Exterior) / Interior Trim / Center Pillar Trim Components and components location

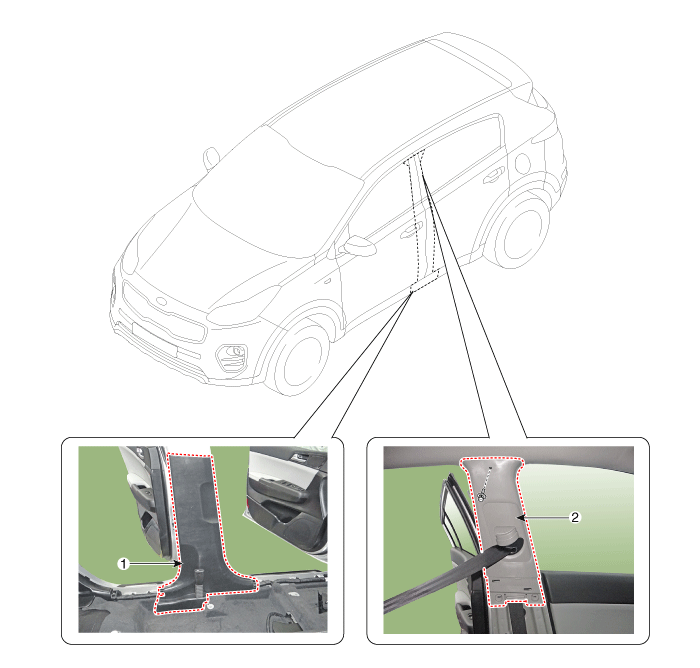

Component Location

1. Center pillar lower trim
2. Center pillar upper trim
