Kia Sportage: Scheduled maintenance service / Normal Maintenance Schedule - Turbo Models
The following maintenance services must be performed to ensure good emission
control and performance. Keep receipts for all vehicle emission services to protect
your warranty. Where both mileage and time are shown, the frequency of service is
determined by whichever occurs first.

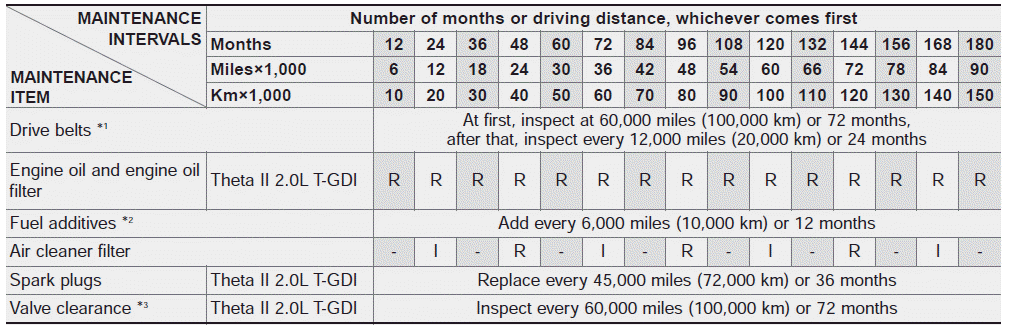

![](images/normal_maintenance_schedule_turbo_models-487/1/page.h57(5).png)
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.

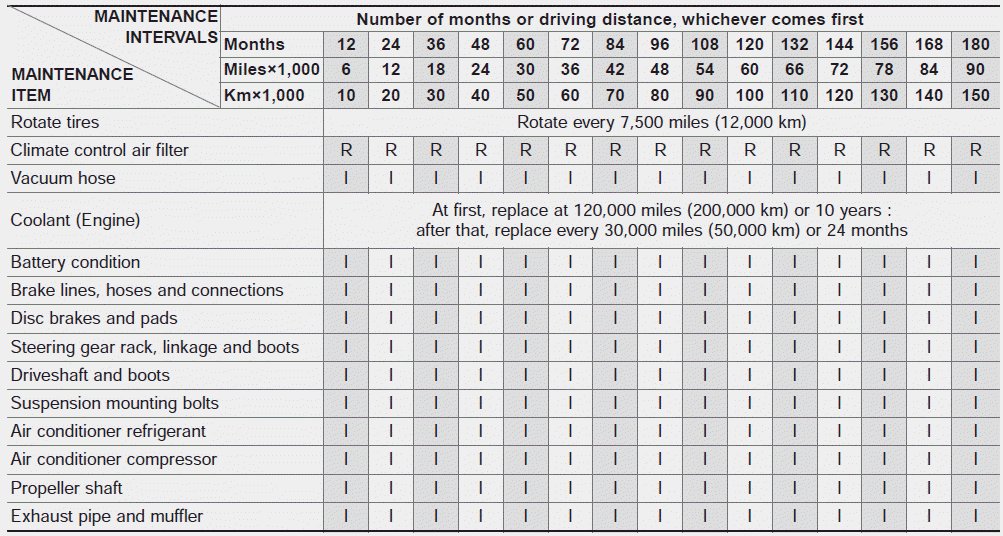

![](images/normal_maintenance_schedule_turbo_models-487/1/page.h58(5).png)

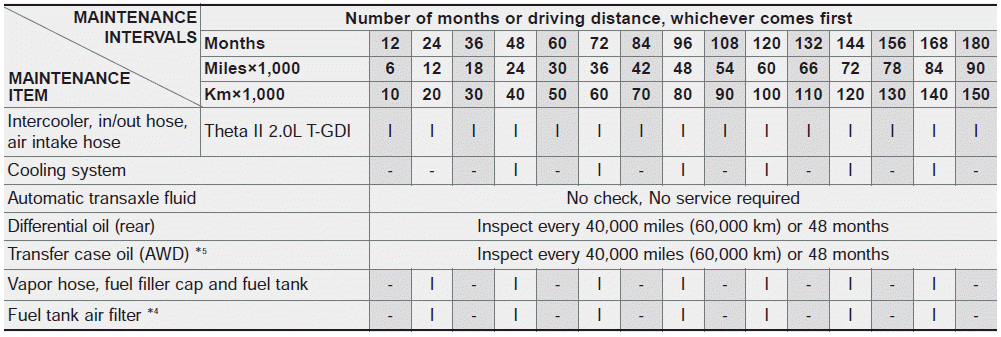

![](images/normal_maintenance_schedule_turbo_models-487/1/page.h59(5).png)

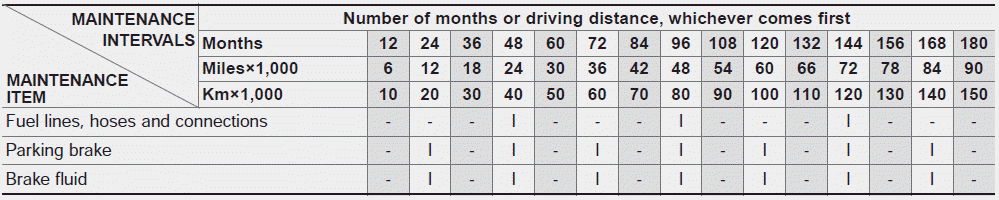

![](images/normal_maintenance_schedule_turbo_models-487/1/page.h60(5).png)
Follow the Normal Maintenance Schedule if the vehicle is usually operated where
none of the following conditions apply. If any of the following conditions apply,
follow the Maintenance Under Sever ...
The following items must be serviced more frequently on cars normally used under
severe driving conditions. Refer to the chart below for the appropriate maintenance
intervals.
R : Replace
I : In ...
