Kia Sportage: Vapor Hose and Fuel Filler Cap / Repair procedures

Kia Sportage QL (2015-2026) Service Manual / Maintenance / Vapor Hose and Fuel Filler Cap / Repair procedures

Inspection

Vapor hose

1.	Check all the clamps for tightness and the connections for leakage.

2.	Visually check the vapor lines and hoses for cracks, leaks, loose connections, or deformation.

Fuel filler cap

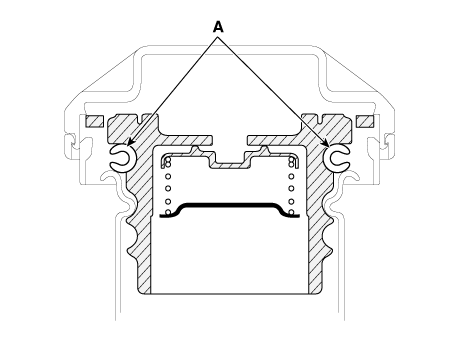

1.	Visually check that the fuel tank cap assembly and gasket (A) are not deformed or damaged.
