Kia Sportage: Front Seat Belt / Front Seat Belt Buckle Repair procedures

Kia Sportage QL (2015-2021) Service Manual / Body (Interior and Exterior) / Front Seat Belt / Front Seat Belt Buckle Repair procedures

Replacement
1.
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
2.

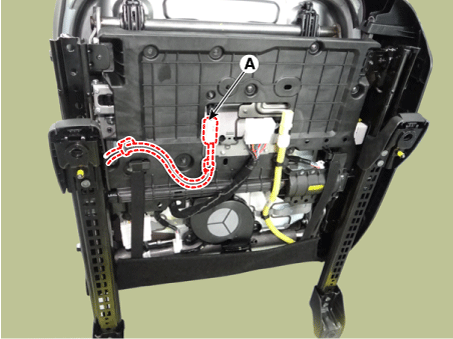

Disconnect the front seat belt buckle connector wiring (A).

3.

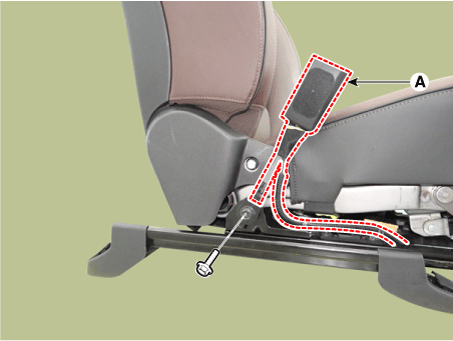

Remove the front seat belt buckle (A) loosening the mounting bolt.
Tightening torque :
39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.9 - 39.8 lb·ft)

4.
Install in the reverse order of removal.

Make sure that the connector is plugged in properly.
Replace any damaged clips.
