Kia Sportage: Defogging logic / Automatic climate control system

Kia Sportage QL (2015-2024) Owners Manual / Features of your vehicle / Windshield defrosting and defogging / Defogging logic / Automatic climate control system

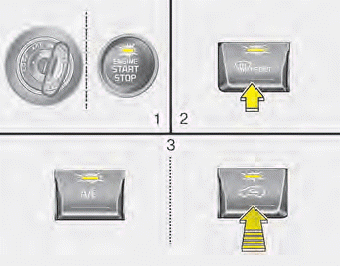

1. Turn the ignition switch to the ON position.

2. Press the defroster button ().

3. While pressing the air conditioning button (A/C), press the air intake control button at least 5 times within 3 seconds.

The recirculation indicator blinks 3 times with 0.5 second of interval. It indicates that the defogging logic is canceled or returned to the programmed status.

If the battery has been discharged or disconnected, it resets to the defog logic status.
