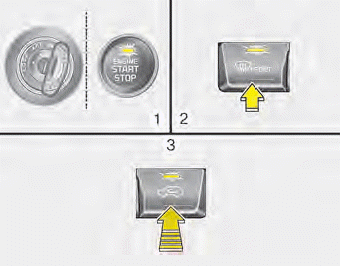

1. Turn the ignition switch to the ON position.

2. Press the defroster button ().

3. Within 3 seconds after pressing the defroster button, press the air intake control button at least 5 times within 3 seconds.

If the battery has been discharged or disconnected, it resets to the defog logic status.
