Kia Sportage: Roof Trim / Sunvisor Components and components location

Kia Sportage QL (2015-2026) Service Manual / Body (Interior and Exterior) / Roof Trim / Sunvisor Components and components location

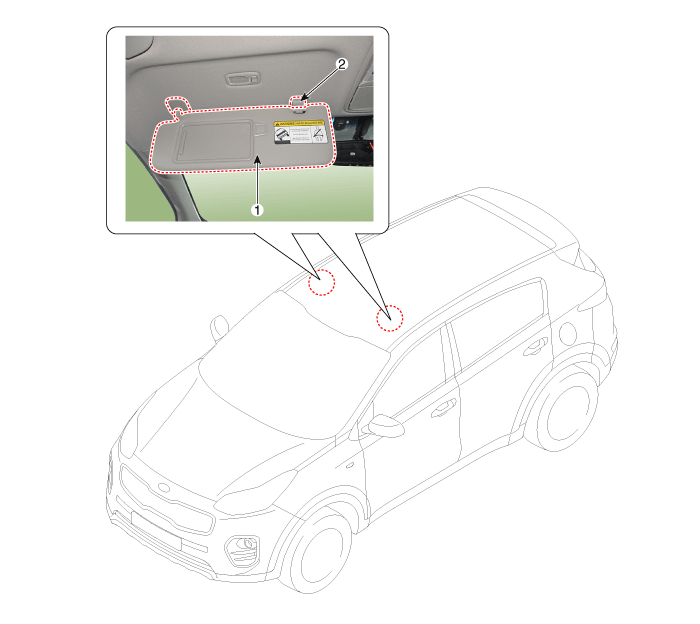

Component Location

1. Sunvisor

2. Retainer

Components and components location

Components (1) [General Type] 1. Sunvisor [LH] 2. Sunvisor [RH] 3. Assist handle 4. Roof trim Components (2) ...

Sunvisor Repair procedures

Replacement Put on gloves to protect your hands. ...
