Description

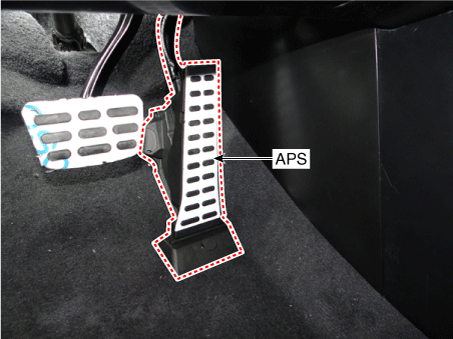

Accelerator Position Sensor (APS) is installed on the accelerator pedal module and detects the rotation angle of the accelerator pedal. The APS is one of the most important sensors in engine control system, so it consists of the two sensors which adapt individual sensor power and ground line. The second sensor monitors the first sensor and its output voltage is half of the first one. If the ratio of the sensor 1 and 2 is out of the range (approximately 1/2), the diagnostic system judges that it is abnormal.

Accelerator Position Sensor (APS) Specifications
Specification Accelerator Position Output Voltage (V) [Vref = 5V] APS1 APS2 C.T 0.7 - 0.8 ...
