Kia Sportage: Front Seat / Components and components location

Kia Sportage QL (2015-2019) Service Manual / Body (Interior and Exterior) / Front Seat / Components and components location

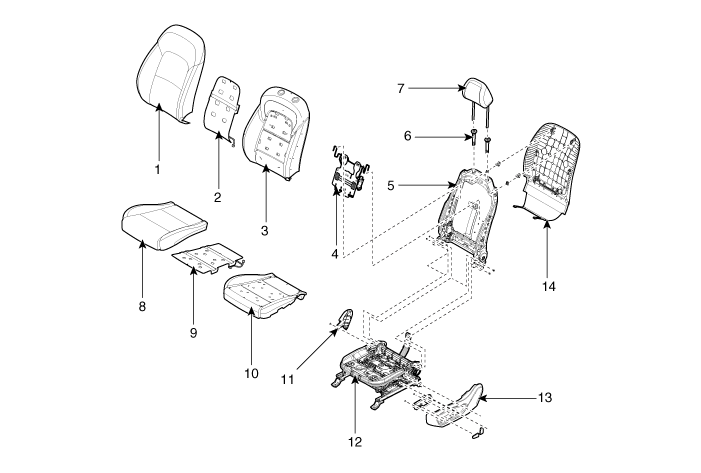

Components

1. Front seat trim back covering
2. Front seat trim back heater
3. Front seat back pad
4. Front seat power lumbar support
5. Front seat back frame
6. Front seat headrest guide
7. Front seat headrest
8. Front seat cushion covering
9. Front seat cushion heater
10. Front seat cushion pad
11. Front seat inner shield cover
12. Front seat cushion frame
13. Front seat outer shield cover
14. Front seat back board
