Kia Sportage: Cooling System / Water Temperature Control Assembly Components and components location

Kia Sportage QL (2015-2023) Service Manual / Engine Mechanical System / Cooling System / Water Temperature Control Assembly Components and components location

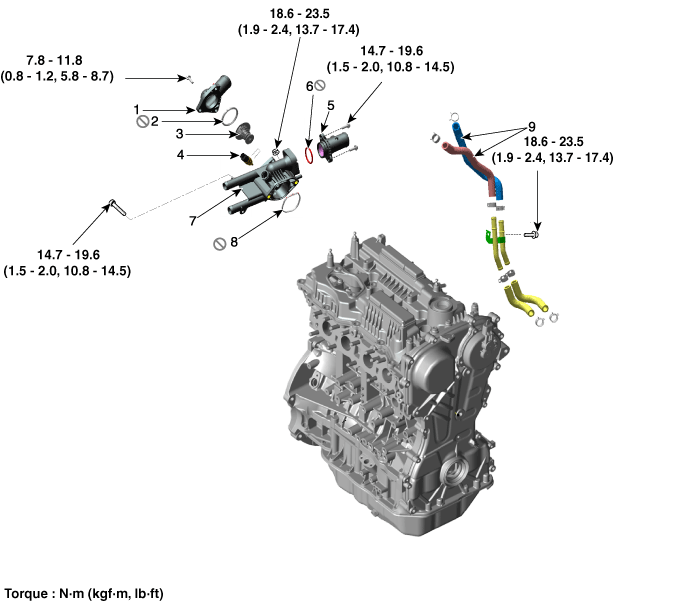

Components

1. Water inlet fitting
2. Water inlet fitting O-ring
3. Thermostat
4. Engine coolant temperature sensor
5. Water outlet fitting

6. Water outlet fitting O-ring
7. Water temperature control assembly
8. Water temperature control assembly O-ring
9. Oil cooler hose & pipe

Reservoir Tank Repair procedures

Removal and Installation 1. Disconnect the radiator reservoir hose (A), and then drain the coolant from the reservoir tank. 2. Disc ...

Water Temperature Control Assembly Repair procedures

Removal and Installation 1. Remove the engine cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under Cover") 2. ...
