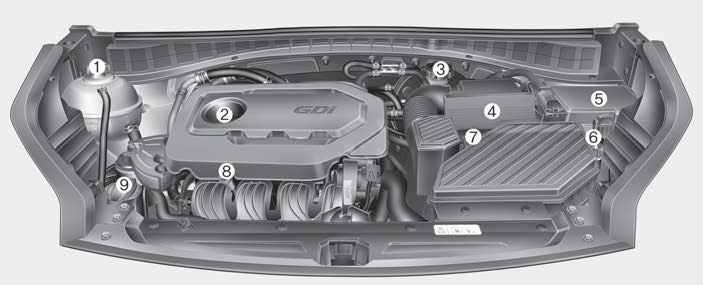

■ Gasoline Engine (Gamma 1.6 - GDI)

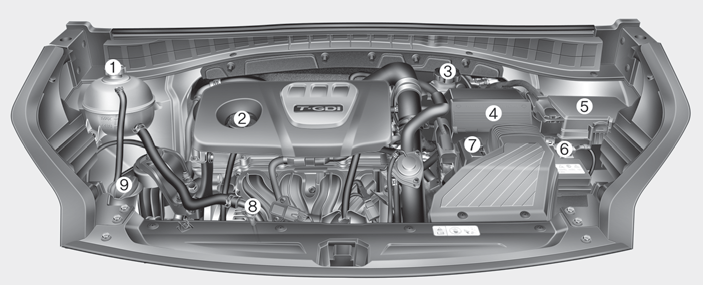

■ Gasoline Engine (Gamma 1.6 - TGDI)

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9.Windshield washer fluid reservoir

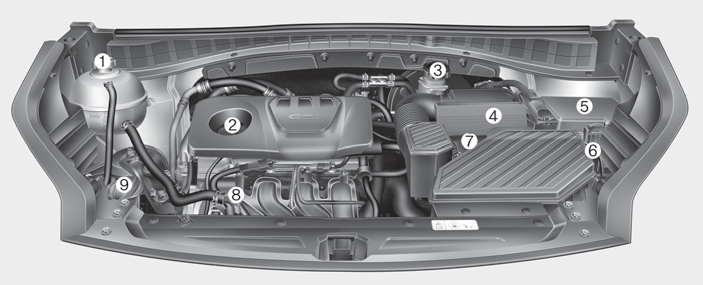

■ Gasoline Engine (Nu 2.0L - MPI)

■ Gasoline Engine (Theta II 2.4L - GDI)

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9.Windshield washer fluid reservoir

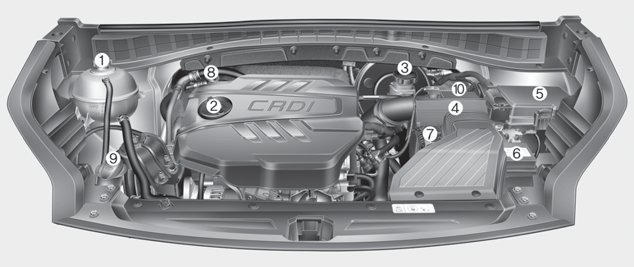

■ Diesel Engine (Smartstream D 1.6)

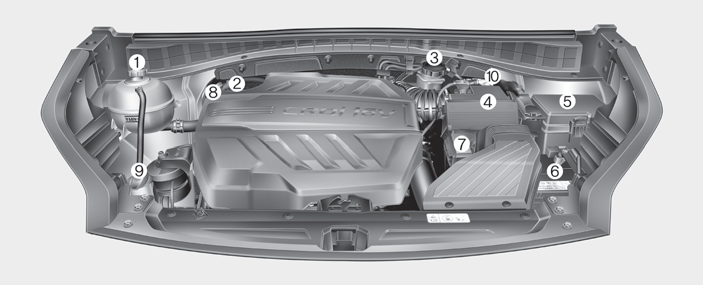

■ Diesel Engine (R 2.0/R 2.0 48V MHEV)

1. Engine coolant reservoir
2. Engine oil filler cap
3. Brake/clutch fluid reservoir
4. Air cleaner
5. Fuse box
6. Negative battery terminal
7. Positive battery terminal
8. Engine oil dipstick
9.Windshield washer fluid reservoir
10. Fuel filter cartridge
