Kia Sportage: Cooling System / Reservoir Tank Repair procedures
Kia Sportage QL (2015-2026) Service Manual / Engine Mechanical System / Cooling System / Reservoir Tank Repair procedures
| Removal and Installation |
| 1. |

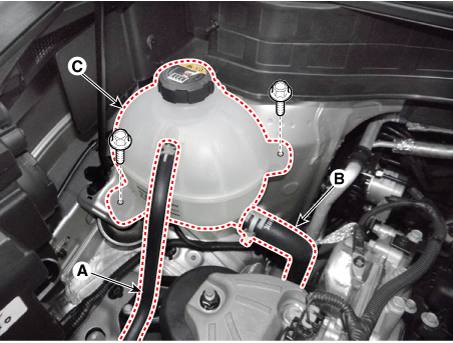

Disconnect the radiator reservoir hose (A), and then drain the coolant
from the reservoir tank.
|
| 2. |
Disconnect the reservoir hose (B).
|
| 3. |
Remove the reservoir tank (C).
|
| 4. |
Install in the reverse order of removal.
|
| 5. |
Refill the coolant.
|
