Kia Sportage: Engine Control System / Variable Intake Solenoid (VIS) Valve Components and components location

Kia Sportage QL (2015-2020) Service Manual / Engine Control / Fuel System / Engine Control System / Variable Intake Solenoid (VIS) Valve Components and components location

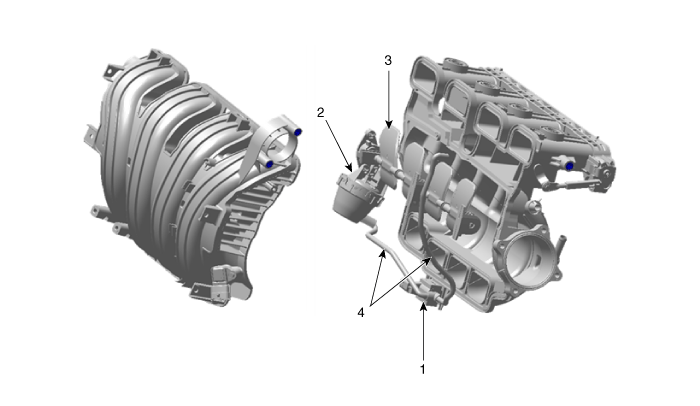

Components

1. Variable Intake Solenoid (VIS) Valve
2. Variable Intake Solenoid (VIS) Actuator
3. Variable Intake Solenoid (VIS) Flap
4. Vacuum Hose

Variable Intake Solenoid (VIS) Valve Specifications
Specification Item Specification Coil resistance (Ω) 30.0 - 35.0 [20°C(68°F)] ...

Variable Intake Solenoid (VIS) Valve Description and operation
Description Variable Intake manifold Solenoid (VIS) valve is installed on the intake manifold. The VIS valve controls the vacuum modulator which activates a valve in the intake m ...
