Kia Sportage: Scheduled maintenance service / Normal Maintenance Schedule - Non Turbo Models

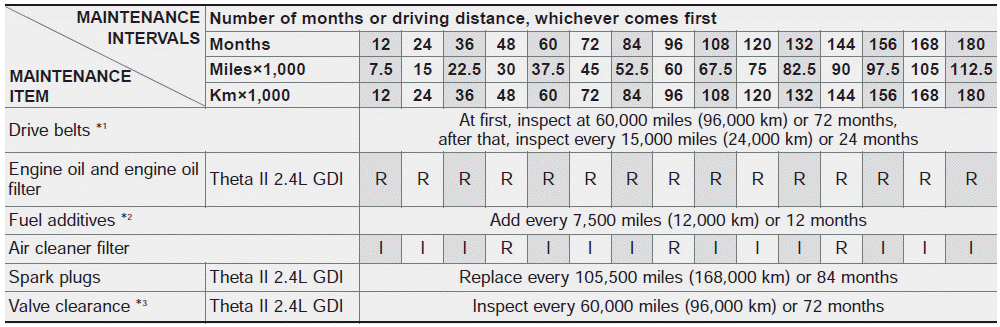

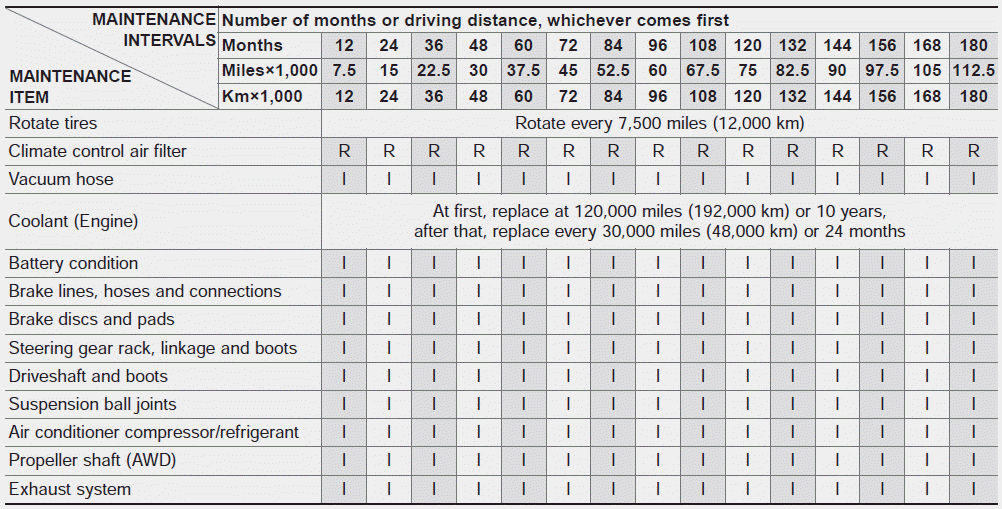

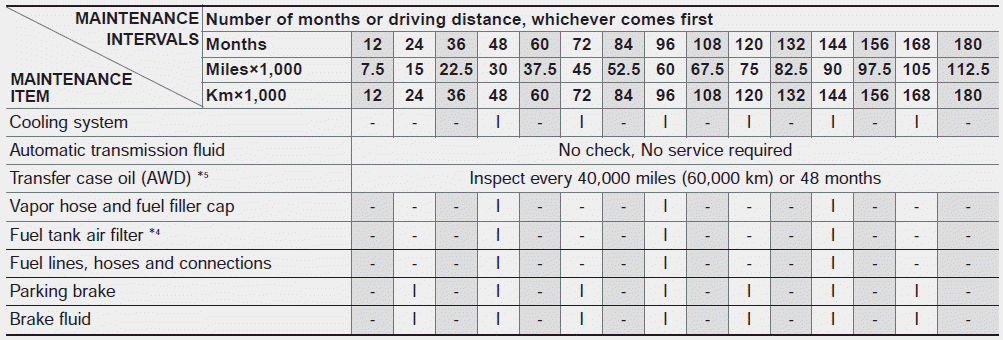

The following maintenance services must be performed to ensure good emission
control and performance. Keep receipts for all vehicle emission services to protect
your warranty. Where both mileage and time are shown, the frequency of service is
determined by whichever occurs first.
![](images/normal_maintenance_schedule_non_turbo_models-490/1/page.h63(5).png)
I : Inspect and if necessary, adjust, correct, clean or replace.
R : Replace or change.
![](images/normal_maintenance_schedule_non_turbo_models-490/1/page.h64(5).png)
![](images/normal_maintenance_schedule_non_turbo_models-490/1/page.h65(5).png)
