Kia Sportage: Light bulbs / Vanity mirror lamp bulb replacement

Kia Sportage QL (2015-2026) Owners Manual / Maintenance / Light bulbs / Vanity mirror lamp bulb replacement

WARNING

Prior to working on the Interior lamps, ensure that the “OFF” button is depressed to avoid burning your fingers or receiving an electric shock.

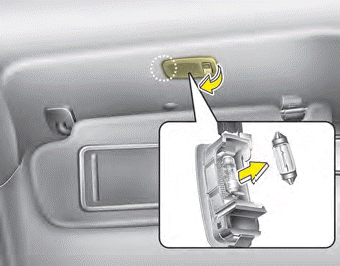

1. Using a flat-blade screwdriver, gently pry the lamp assembly from interior.

2. Remove the bulb by pulling it straight out.

3. Install a new bulb in the socket.

4. Install the lamp assembly to interior.

✽ NOTICE

Be careful not to dirty or damage the lens, lens tab, and plastic housings.
