Kia Sportage: Power Door Mirrors / Power Door Mirror Actuator Components and components location

Kia Sportage QL (2015-2022) Service Manual / Body Electrical System / Power Door Mirrors / Power Door Mirror Actuator Components and components location

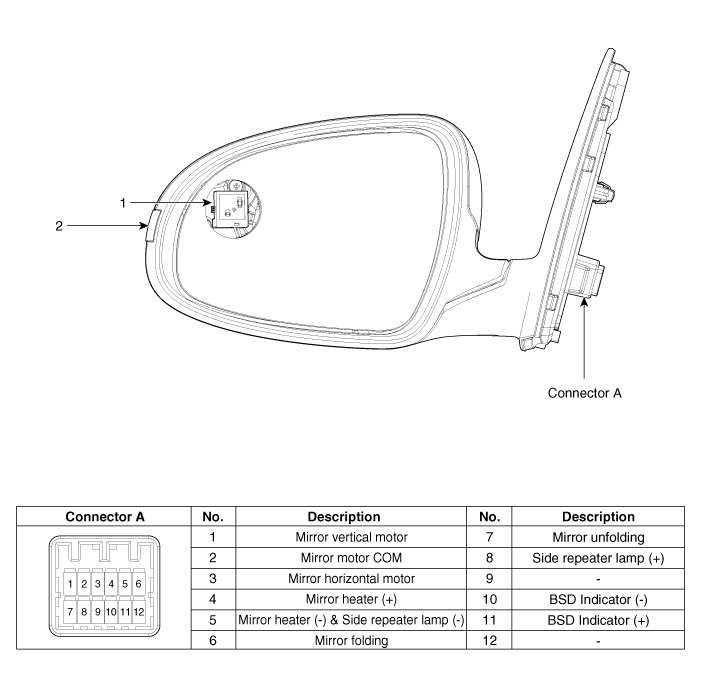

Components

1. BSD Indicator
2. Side repeater lamp
