Kia Sportage: Light bulbs / Room lamp bulb replacement
WARNING
Prior to working on the Interior lamps, ensure that the “OFF” button is depressed
to avoid burning your fingers or receiving an electric shock.

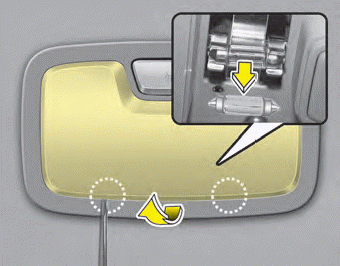

1. Using a flat-blade screwdriver, gently pry the lens cover from lamp housing.
2. Remove the bulb by pulling it straight out.
3. Install a new bulb in the socket.
4. Align the lens cover tabs with the lamp housing notches and snap the lens
into place.
✽ NOTICE
Be careful not to dirty or damage the lens, lens tab, and plastic housings.
