| Description |
| • |
The sensor used is a thermistor (NTC) in which resistance changes with
temperature variation.
|
| • |
The TCM supplies about 5 voltage to the sensor; the output value changes
with ATF temperature.
|
| • |

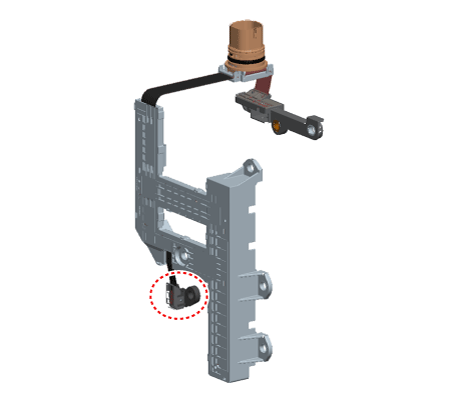

Oil temperature sensor is installed on the valve body integrated with
a solenoid valve harness.
|
Functions
| • |
Transaxle oil temperature sensor monitors the temperature of ATF and
conveys the readings to TCM.
|
| • |
Data produced by this sensor is used to identify torque converter clutch
activation and deactivation zones within the low temperature and high
temperature range and to compensate hydraulic pressure levels during
gear changes.
|
Transaxle Oil Temperature Sensor Specifications
Specification
Item
Specification
Type
*NTC thermistor
Temp.[(°C)°F] / Resistance (kΩ)
(-40)-40 ...
Transaxle Oil Temperature Sensor Schematic diagrams
Circuit Diagram
...
