Kia Sportage: Automatic Transaxle Control System / Transaxle Oil Temperature Sensor Schematic diagrams

Kia Sportage QL (2015-2021) Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Transaxle Oil Temperature Sensor Schematic diagrams

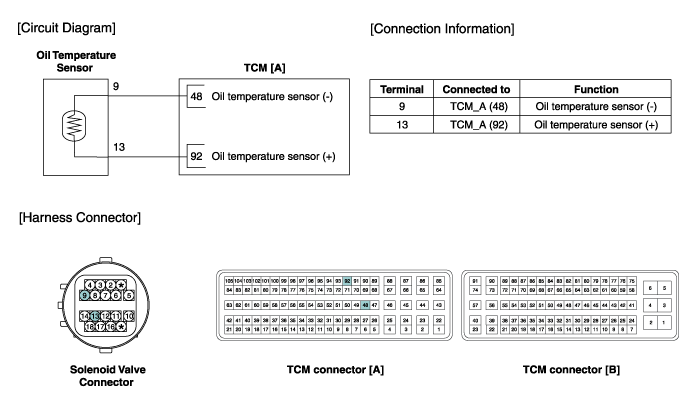

Circuit Diagram

Transaxle Oil Temperature Sensor Description and operation
Description • The sensor used is a thermistor (NTC) in which resistance changes with temperature variation. • The TCM supplies ...

Transaxle Oil Temperature Sensor Repair procedures
Inspection 1. Switch "OFF" ignition. 2. Remove the battery and battery tray. (Refer to Engine Electrical System - &qu ...
